Lawler’s Model 61® is an effective solution for specifiers who want Lawler’s exclusive Three-Way Protection™ in a small capacity master controller. The 61® helps engineers “right-size” the valve for low-to-mid range applications (½-25 GPM) without sacrificing performance. Before the 61® became available, standard larger valves simply could not satisfactorily control temperatures at low flows. Now with Three-Way Protection™, the small master controller Model 61® delivers protection against runaway temperatures, thermal shock, or scalding should the thermostat, hot or cold water supply fail. That means Model 61®, like every Lawler master controller, not only meets, but exceeds the ASSE 1017 standard.
Specifications:
| Series: 61 |
| Model: 6110 |

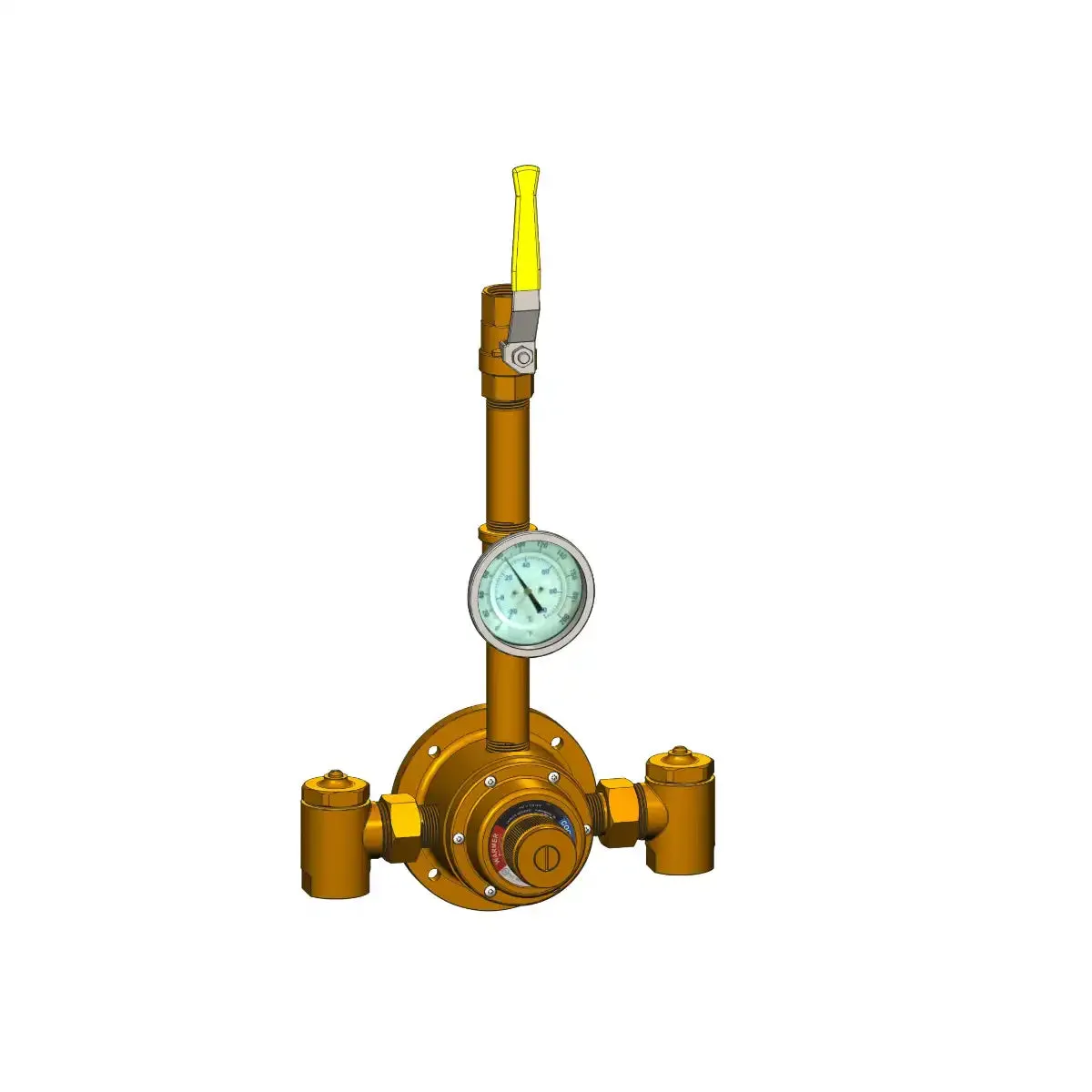

| Configuration: Piped Thermometer Ball Valve |
| Engineering Number: 84008 |
| Certification/s: ASSE 1017, CSA B125.3 |
| Connection Type: NPT |
| Inlet Connection Size: 1/2" |
| Outlet Connection Size: 1/2" |
| Min Flow: 1/2 GPM |
| Min Flow with Recirculation: 1/4 GPM" |
| Rated Flow at 10 PSI: 3-1/2 GPM |
| Rated Flow at 45 PSI: 10 GPM |
| Temperature Range: 100°F – 150°F, 50°F – 100°F, 85°F – 135°F |
| Finish: Polished Chrome, Rough Brass |
| Part Number: 84008-03 Rough Bronze, 84008-04 Polished Chrome |
