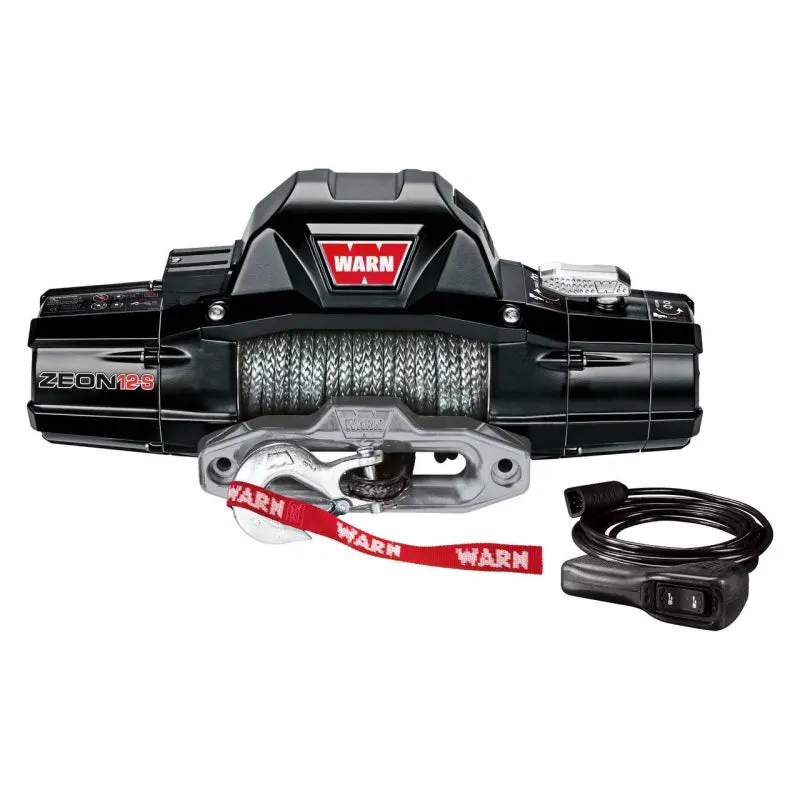

Warn Zeon 12-S 12,000lbs Electric 12v Winch with Spydura Pro Synthetic Rope and Polished Hawse Fairlead
The WARN ZEON has proven itself in the field and among off roaders.
Now you can get the 12,000 Pounds capacity ZEON winch with Spydura Pro synthetic rope. The new ZEON 12-S winch trims weight but keeps plenty of muscle for the big jobs and the toughest rescues. And the light, easy-to-handle synthetic rope makes any winching situation a bit easier. It's the perfect choice for heavily loaded off road vehicles.
Features
- Legendary WARN reliability and performance; 12,000 lb. (5443 kg) capacity - perfect for the bigger vehicles.
- Unique exterior styling and symmetrical design give this winch a look that is advanced, capable, and strong.
- New-design planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
- Flat black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion.
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
- Aluminium winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
- Robust aluminium structure is durable and helps dissipate heat.
- Extreme waterproofing meets rigorous IP68 standards - the highest rating in the WARN Truck/SUV winch lineup.
- Contactor control for extreme reliability and weather resistance.
- Automatic mechanical cone brake holds the full rated load and offers excellent control while winching.
- Ultra-durable metal-reinforced rubberised corded remote with 3.6m lead.
- Includes 24.38m of 9.5mm Spydura Pro synthetic rope and aluminium hawse failead with powder-coat finish.
- Proprietary and strongest-in-class Spydura Pro synthetic rope is found on many military vehicles. This rope features a urathane-coated 12-strand braid, heat treated under tension. A 6m Nomex heat sleeve protects the rope on the layer nearest the drum.
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) Year Manufacturer Warranty for Electrical Components.
Specifications
- Model No: 95950
- Type: Electric
- Mount Type: Vehicle Mounted
- Recommend Use: Vehicle Recovery
- Voltage: 12 Volt
- Electrical Control Type: Solenoid
- Motor Type: Series Wound
- Thermal Shutoff: No
- Drive Gear Type: Planetary
- Gear Reduction Ratio: 216:1
- Free Spooling: Yes
- Break Type: Mechanical Cone
- Line Diameter: 9.5mm
- Line Length: 24.4m
- Line Material: Synthetic
- Fairlead Type: Hawse
- Remote Type: 3.7m
- Operation Type: Automatic

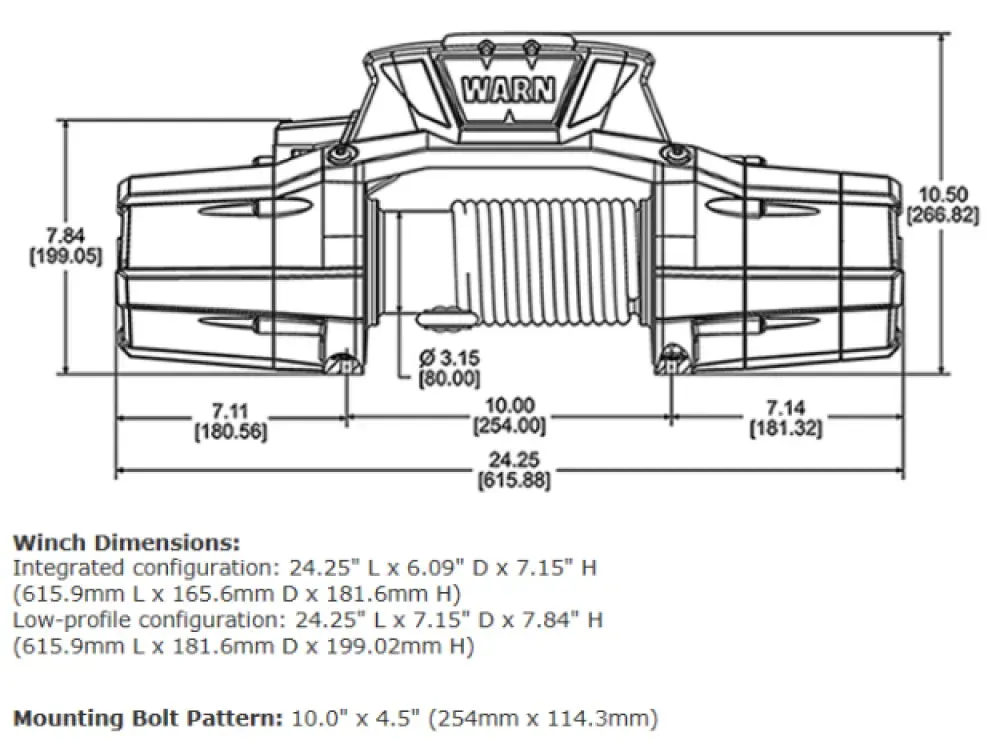

- Winch Dimensions: 615.88 x 199.05 x 266.82mm
- Mounting Pattern Length (in): 10 Inch
- Mounting Pattern Width (in): 4-1/2 Inch
- Colour: Black
- Drum Material: Aluminium

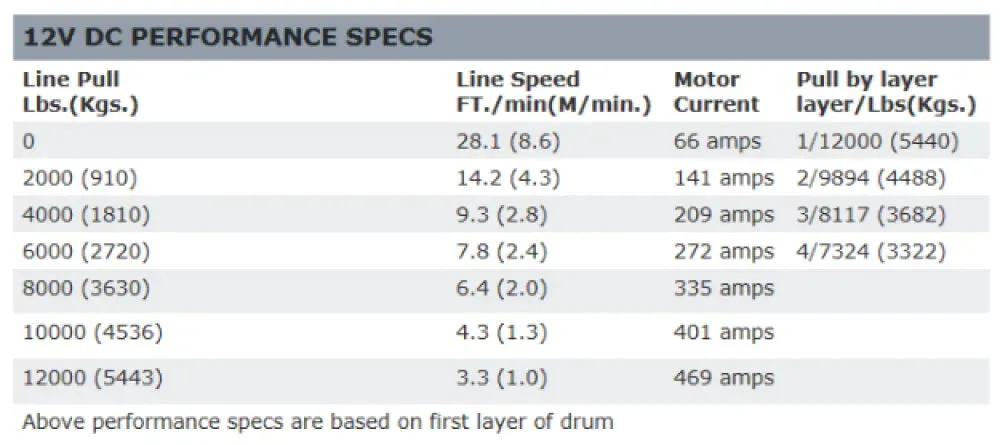

- Max AMP Draw/Line Pull: 469 Amp Draw / 12000 Pound
- Max Line Pull/Line Speed: 12000 Pound / 3.3 Feet Per Minute
