Widely used Special Hot Diamond Machine For Garment Factory hot sale
1.Product introduction of Special Hot Diamond Machine For Garment Factory:
Mainly used for women's clothes, underwear, children's wear, T-shirt, embroidery patterns, belts, handbags, hats and supplemental supplies, etc.
1.Adopting ultrasound, this machine is able to hot fix the rhinestone in purpose materials immediately, such as Denim, Cotton, Jeans, Hemp fabric, Woolen, Synthetic Fiber, Silk, Knitwear, Synthetic Leather, Velvet etc. Especially suitable for the material that can't resist high temperature and easy to deform and discolor.
2.Main components specially imported from other countries, such as two five-way solenoid valve uses from south Korean, cylinder adopts Germany FESTO, two two-way adopt Japan CKD, assuring superior quality and reliable usage.
2.Technical parameters & Quotation of Special Hot Diamond Machine For Garment Factory:
|
Model |
WM-TZ100 |
WM-TZ200 |
|
Voltage |
220V(50/60HZ) |
220v/（50/60hz） |
|
Working speed |
180-360pcs/min |
180-360pcs/min |
|
Pearl size |
2mm-7mm |
2-7mm |
|
Working table max size |
500mm*950mm |
500*950mm |
|
Electric power |
100W |
200w |
|
Air Pressure |
0.4-0.5mpa |
0.4-0.5mpa |
|
Dimension |
600mm*700mm*1050mm |
700x6100x1100mm |
|
Weight |
84KG |
89KG |
|
Item |
Ultrasonic Rhinestone Setting Machine |
|
|
Model |
WM-DK300 |
WM-DK400 |
|
Head |
One |
Two |
|
Voltage |
220v/50hz/60hz |
220v/50hz/60hz |
|
Power |
0.6kw |
1.2kw |
|
Air Pressure |
0.3-0.5MPA |
0.3-0.5MPA |
|
Speed |
200-270pcs/min |
200-270pcs/min |
|
Size of rhinestone |
8-30mm |
8-30mm |
|
Input |
USB/ PORT/wireless WIFI |
USB/ PORT/wireless WIFI |
|
Dimension |
1550*1250*1380mm |
2550*1450*1380mm |
|
Weight |
350kg |
450kg |
Contact Us to Get a Quote

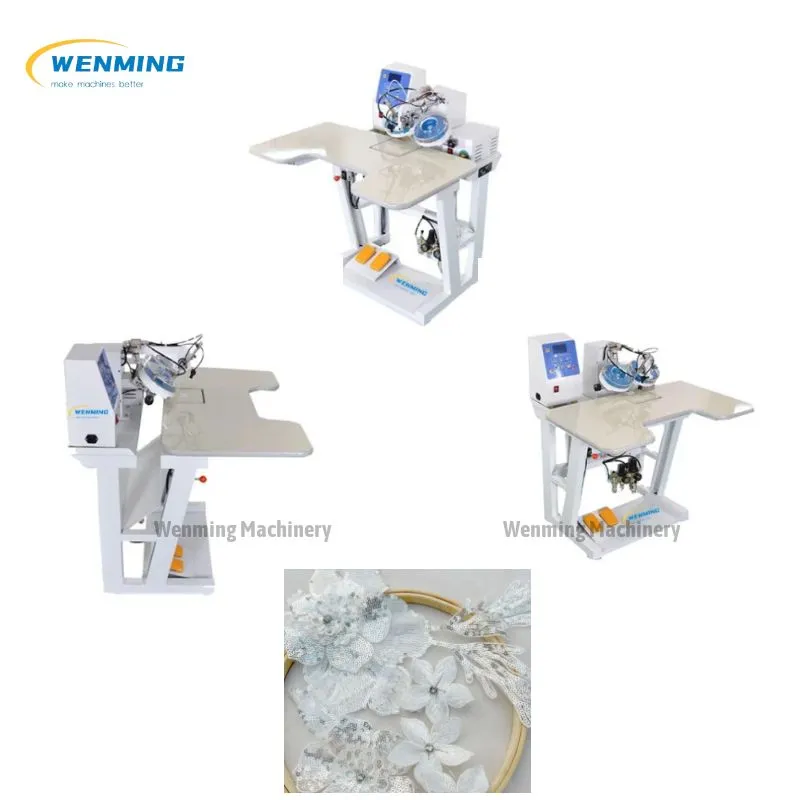

3.Pictures of Special Hot Diamond Machine For Garment Factory:
